UPM1H102MHD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1000UF 20% 50V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPM1H102MHD Datasheet
-
ECAD Model
- Share
In Stock: 354
Can ship immediately
Pricing:
- 1$1.81
- 10$1.4327
- 100$1.07453
- 500$0.81187
- 1,000$0.71636
- 2,500$0.6686
- 5,000$0.64472
Quote It
Technical Details
- Series:UPM
- Package:Bulk
- Part Status:Active
- Capacitance:1000 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.86 A @ 120 Hz
- Ripple Current @ High Frequency:2.15 A @ 10 kHz
- Impedance:30 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):1.319" (33.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products

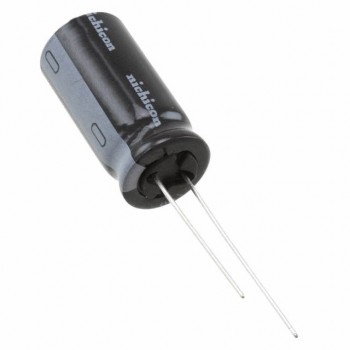

CAP ALUM 47UF 20% 400V RADIAL
