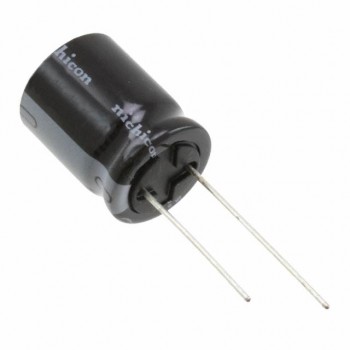

UVZ2C331MHD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 160V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UVZ2C331MHD Datasheet
-
ECAD Model
- Share
In Stock: 320
Can ship immediately
Pricing:
- 1$2.19
- 10$1.76985
- 100$1.35173
- 500$1.02987
- 1,000$0.90114
- 2,500$0.86895
- 5,000$0.83677
Quote It
Technical Details
- Series:UVZ
- Package:Bulk
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:160 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:750 mA @ 120 Hz
- Ripple Current @ High Frequency:862.5 mA @ 10 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):1.634" (41.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
