URZ2D151MHD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

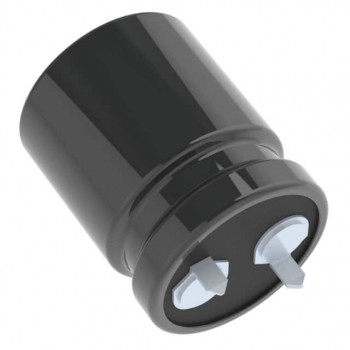

- DescriptionCAP ALUM 150UF 20% 200V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet URZ2D151MHD Datasheet
-
ECAD Model
- Share
In Stock: 365
Can ship immediately
Pricing:
- 1$3.44
- 10$2.77961
- 100$2.12302
- 500$1.61751
- 1,000$1.41532
- 2,500$1.36477
- 5,000$1.31423
Quote It
Technical Details
- Series:URZ
- Package:Bulk
- Part Status:Active
- Capacitance:150 µF
- Tolerance:±20%
- Voltage - Rated:200 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:510 mA @ 120 Hz
- Ripple Current @ High Frequency:816 mA @ 10 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):1.043" (26.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
