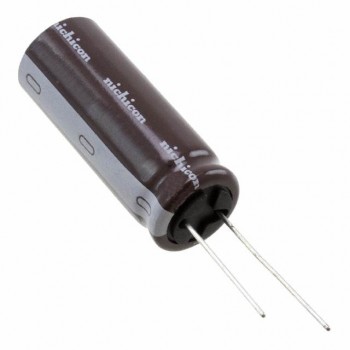

UCY2D391MHD9
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 390UF 20% 200V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UCY2D391MHD9 Datasheet
-
ECAD Model
- Share
In Stock: 195
Can ship immediately
Pricing:
- 1$3.55
- 10$2.86225
- 100$2.23224
- 500$1.65984
- 1,000$1.55681
Quote It
Technical Details
- Series:UCY
- Package:Bulk
- Part Status:Active
- Capacitance:390 µF
- Tolerance:±20%
- Voltage - Rated:200 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:12000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.69 A @ 120 Hz
- Ripple Current @ High Frequency:3.38 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):1.457" (37.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
