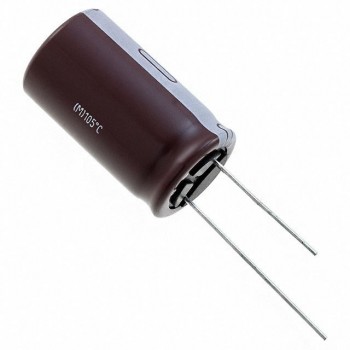

UBW2A331MHD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 100V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UBW2A331MHD Datasheet
-
ECAD Model
- Share
In Stock: 215
Can ship immediately
Pricing:
- 1$3.83
- 10$3.0963
- 100$2.36468
- 500$1.80167
- 1,000$1.57646
- 2,500$1.52016
- 5,000$1.46386
Quote It
Technical Details
- Series:UBW
- Package:Bulk
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:100 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 135°C
- Operating Temperature:-55°C ~ 135°C
- Polarization:Polar
- Ratings:-
- Applications:Automotive
- Ripple Current @ Low Frequency:895 mA @ 120 Hz
- Ripple Current @ High Frequency:1.79 A @ 100 kHz
- Impedance:79 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):1.319" (33.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
