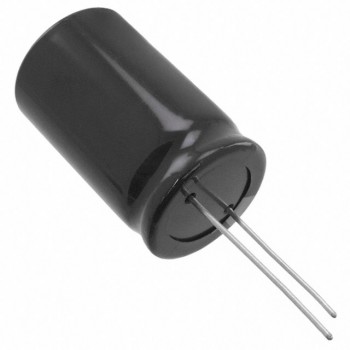

LKS1H682MESC
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 6800UF 20% 50V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet LKS1H682MESC Datasheet
-
ECAD Model
- Share
In Stock: 245
Can ship immediately
Pricing:
- 1$5.91
- 10$5.25551
- 100$4.20469
- 500$3.61343
- 1,000$3.574
Quote It
Technical Details
- Series:LKS
- Package:Bulk
- Part Status:Active
- Capacitance:6800 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:Audio
- Ripple Current @ Low Frequency:3.15 A @ 120 Hz
- Ripple Current @ High Frequency:-
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):0.984" (25.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
