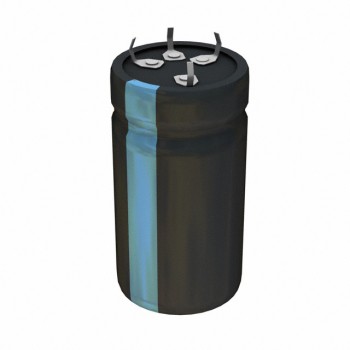

ALS80A393DB025
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 39000UF 20% 25V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet ALS80A393DB025 Datasheet
-
ECAD Model
- Share
In Stock: 257
Can ship immediately
Pricing:
- 1$10.7
- 10$10.16132
- 100$8.02185
- 500$7.11272
- 1,000$6.68487
Quote It
Technical Details
- Series:ALS80
- Package:Bulk
- Part Status:Active
- Capacitance:39000 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):38mOhm @ 100Hz
- Lifetime @ Temp.:6000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:9.8 A @ 100 Hz
- Ripple Current @ High Frequency:11.7 A @ 10 kHz
- Impedance:34 mOhms
- Lead Spacing:0.504" (12.80mm)
- Size / Dimension:1.417" Dia (36.00mm)
- Height - Seated (Max):2.520" (64.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
