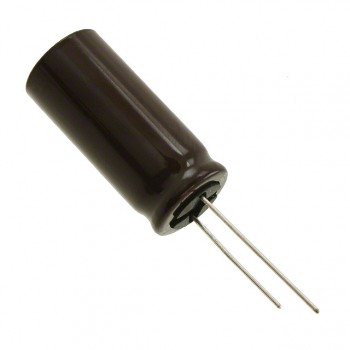

UPA1E222MHD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 2200UF 20% 25V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPA1E222MHD Datasheet
-
ECAD Model
- Share
In Stock: 290
Can ship immediately
Pricing:
- 1$1.97
- 10$1.5558
- 100$1.16722
- 500$0.8819
- 1,000$0.77815
- 2,500$0.72627
- 5,000$0.70033
Quote It
Technical Details
- Series:UPA
- Package:Bulk
- Part Status:Active
- Capacitance:2200 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.312 A @ 120 Hz
- Ripple Current @ High Frequency:2.72 A @ 100 kHz
- Impedance:18 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):1.319" (33.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
