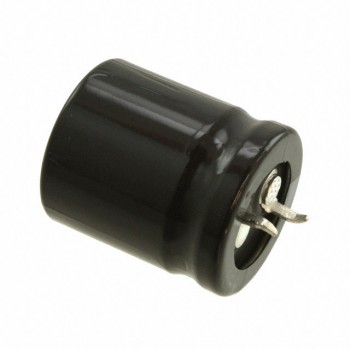

LGU2P181MELY
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 180UF 20% 220V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet LGU2P181MELY Datasheet
-
ECAD Model
- Share
In Stock: 384
Can ship immediately
Pricing:
- 1$2.86
- 10$2.30936
- 100$1.76323
- 500$1.34337
- 1,000$1.17545
- 2,500$1.14186
Quote It
Technical Details
- Series:LGU
- Package:Bulk
- Part Status:Active
- Capacitance:180 µF
- Tolerance:±20%
- Voltage - Rated:220 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:900 mA @ 120 Hz
- Ripple Current @ High Frequency:1.35 A @ 50 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.787" Dia (20.00mm)
- Height - Seated (Max):0.984" (25.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
