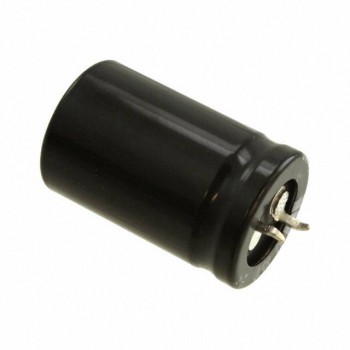

380LX471M100H012
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 470UF 20% 100V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet 380LX471M100H012 Datasheet
-
ECAD Model
- Share
In Stock: 351
Can ship immediately
Pricing:
- 1$2.96
- 10$2.39783
- 100$1.83107
- 500$1.3951
- 1,000$1.22071
- 2,500$1.17712
- 5,000$1.13352
Quote It
Technical Details
- Series:380LX
- Package:Bulk
- Part Status:Active
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:100 V
- ESR (Equivalent Series Resistance):450mOhm @ 120Hz
- Lifetime @ Temp.:3000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.1 A @ 120 Hz
- Ripple Current @ High Frequency:-
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.866" Dia (22.00mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
