EEU-TP1V152S
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant

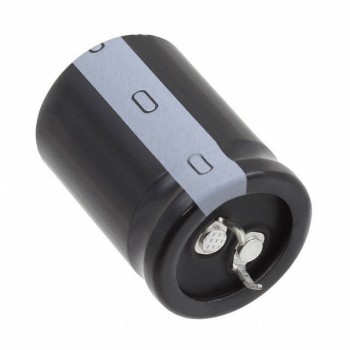

- DescriptionCAP ALUM 1500UF 20% 35V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEU-TP1V152S Datasheet
-
ECAD Model
- Share
In Stock: 1,013
Can ship immediately
Pricing:
- 1$3.57
- 10$2.8894
- 100$2.20649
- 500$1.68117
- 1,000$1.47103
- 2,500$1.41848
- 5,000$1.36595
Quote It
Technical Details
- Series:TP
- Package:Bulk
- Part Status:Active
- Capacitance:1500 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 125°C
- Operating Temperature:-40°C ~ 135°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:2.16 A @ 120 Hz
- Ripple Current @ High Frequency:2.25 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):0.866" (22.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
