EGPD630ELL911MM20H
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant

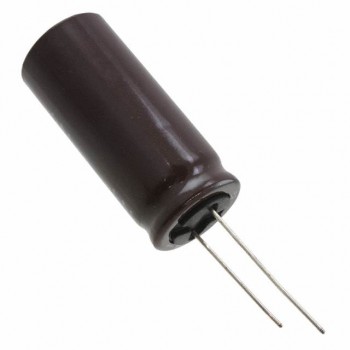

- DescriptionCAP ALUM 910UF 20% 63V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet EGPD630ELL911MM20H Datasheet
-
ECAD Model
- Share
In Stock: 319
Can ship immediately
Pricing:
- 1$3.87
- 10$3.1335
- 100$2.39235
- 500$1.82277
- 1,000$1.59493
- 2,500$1.54937
Quote It
Technical Details
- Series:GPD
- Package:Bulk
- Part Status:Active
- Capacitance:910 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):44mOhm @ 100kHz
- Lifetime @ Temp.:2000 Hrs @ 135°C
- Operating Temperature:-40°C ~ 135°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:1.41 A @ 120 Hz
- Ripple Current @ High Frequency:2.35 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):0.846" (21.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
