EGPD350ELL242MM20H
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant

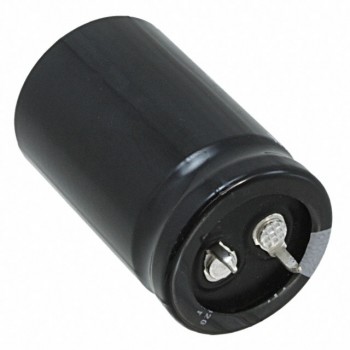

- DescriptionCAP ALUM 2400UF 20% 35V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet EGPD350ELL242MM20H Datasheet
-
ECAD Model
- Share
In Stock: 152
Can ship immediately
Pricing:
- 1$4.38
- 10$3.53689
- 100$2.70095
- 500$2.05791
- 1,000$1.80067
- 2,500$1.74922
Quote It
Technical Details
- Series:GPD
- Package:Bulk
- Part Status:Active
- Capacitance:2400 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):34mOhm @ 100kHz
- Lifetime @ Temp.:3000 Hrs @ 135°C
- Operating Temperature:-40°C ~ 135°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:2.4375 A @ 120 Hz
- Ripple Current @ High Frequency:3.25 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):0.846" (21.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
