80USG3900MEFCSN25X40
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant

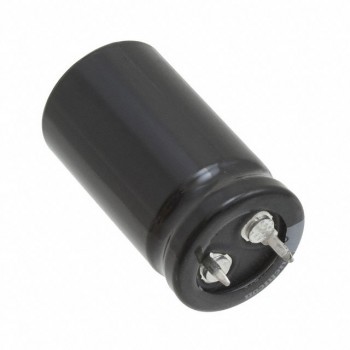

- DescriptionCAP ALUM 3900UF 20% 80V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet 80USG3900MEFCSN25X40 Datasheet
-
ECAD Model
- Share
In Stock: 234
Can ship immediately
Pricing:
- 1$5.32
- 10$4.78517
- 100$3.6158
- 500$2.97771
- 1,000$2.76501
- 2,500$2.71184
Quote It
Technical Details
- Series:USG
- Package:Bulk
- Part Status:Active
- Capacitance:3900 µF
- Tolerance:±20%
- Voltage - Rated:80 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.62 A @ 120 Hz
- Ripple Current @ High Frequency:4.163 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.984" Dia (25.00mm)
- Height - Seated (Max):1.654" (42.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
