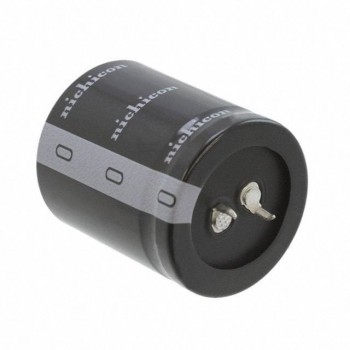

LGU2C182MELB
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1800UF 20% 160V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet LGU2C182MELB Datasheet
-
ECAD Model
- Share
In Stock: 235
Can ship immediately
Pricing:
- 1$5.57
- 10$5.01568
- 100$3.78956
- 500$3.12082
- 1,000$3.03166
Quote It
Technical Details
- Series:LGU
- Package:Bulk
- Part Status:Active
- Capacitance:1800 µF
- Tolerance:±20%
- Voltage - Rated:160 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.32 A @ 120 Hz
- Ripple Current @ High Frequency:4.98 A @ 50 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.181" Dia (30.00mm)
- Height - Seated (Max):1.772" (45.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
