LNT1E683MSE
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 68000UF 20% 25V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet LNT1E683MSE Datasheet
-
ECAD Model
- Share
In Stock: 185
Can ship immediately
Pricing:
- 1$33.03
- 10$31.29136
- 100$25.20695
Quote It
Technical Details
- Series:LNT
- Package:Bulk
- Part Status:Active
- Capacitance:68000 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:10.2 A @ 120 Hz
- Ripple Current @ High Frequency:11.73 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.866" (22.00mm)
- Size / Dimension:2.008" Dia (51.00mm)
- Height - Seated (Max):4.843" (123.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
Related Products
CAP ALUM 3600UF 20% 400V RADIAL
- 1: $33.89000

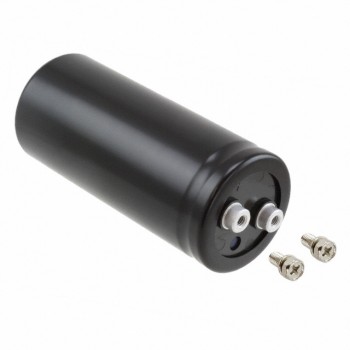

CAP ALUM 2200UF 20% 350V SCREW
