LNT1J154MSE
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

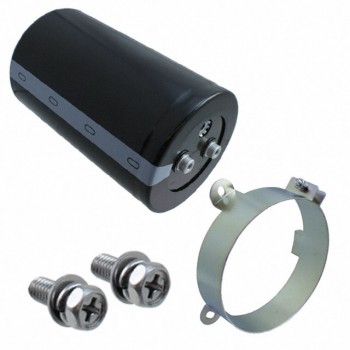

- DescriptionCAP ALUM 150000UF 20% 63V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet LNT1J154MSE Datasheet
-
ECAD Model
- Share
In Stock: 120
Can ship immediately
Pricing:
- 1$128.6
- 10$121.95002
Quote It
Technical Details
- Series:LNT
- Package:Bulk
- Part Status:Active
- Capacitance:150000 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:21 A @ 120 Hz
- Ripple Current @ High Frequency:24.15 A @ 10 kHz
- Impedance:-
- Lead Spacing:1.252" (31.80mm)
- Size / Dimension:3.543" Dia (90.00mm)
- Height - Seated (Max):6.811" (173.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
