UPW1V270MDD1TD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

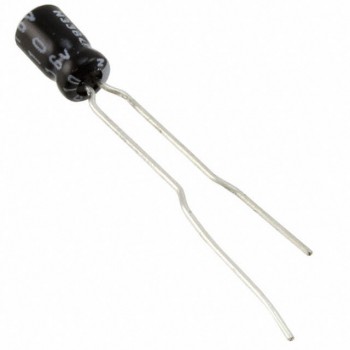

- DescriptionCAP ALUM 27UF 20% 35V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPW1V270MDD1TD Datasheet
-
ECAD Model
- Share
In Stock: 943
Can ship immediately
Pricing:
- 1$0.31
- 2,000$0.06448
- 4,000$0.05964
- 10,000$0.05642
- 14,000$0.05352
- 50,000$0.04836
- 100,000$0.04272
Quote It
Technical Details
- Series:UPW
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:27 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:54 mA @ 120 Hz
- Ripple Current @ High Frequency:180 mA @ 100 kHz
- Impedance:600 mOhms
- Lead Spacing:0.098" (2.50mm)
- Size / Dimension:0.197" Dia (5.00mm)
- Height - Seated (Max):0.492" (12.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
