UWT1V220MCL1GB

Nichicon
In Stock: 1,055

Can ship immediately

Pricing:
  • 1$0.37
  • 1,000$0.08384
  • 2,000$0.07943
  • 5,000$0.07501
  • 10,000$0.0706
  • 25,000$0.06619
  • 50,000$0.06177
  • 100,000$0.05736

Quote It

Technical Details

  • Series:UWT
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Capacitance:22 µF
  • Tolerance:±20%
  • Voltage - Rated:35 V
  • ESR (Equivalent Series Resistance):-
  • Lifetime @ Temp.:1000 Hrs @ 105°C
  • Operating Temperature:-55°C ~ 105°C
  • Polarization:Polar
  • Ratings:-



  • Applications:General Purpose
  • Ripple Current @ Low Frequency:42 mA @ 120 Hz
  • Ripple Current @ High Frequency:63 mA @ 10 kHz
  • Impedance:-
  • Lead Spacing:-
  • Size / Dimension:0.248" Dia (6.30mm)
  • Height - Seated (Max):0.213" (5.40mm)
  • Surface Mount Land Size:0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Mounting Type:Surface Mount
  • Package / Case:Radial, Can - SMD

Related Products


UUT0J330MCL1GS

CAP ALUM 33UF 20% 6.3V SMD

UUT0J330MCL1GS Datasheet
  • 1: $0.37000
  • 1000: $0.08029
  • 2000: $0.07647

EEE-1EA3R3NR

CAP ALUM 3.3UF 20% 25V SMD

EEE-1EA3R3NR Datasheet
  • 1: $0.37000
  • 2000: $0.08506
  • 4000: $0.08033

UUT0G470MCL1GS

CAP ALUM 47UF 20% 4V SMD

UUT0G470MCL1GS Datasheet
  • 1: $0.37000
  • 1000: $0.08029
  • 2000: $0.07647

EMVE500ADA3R3MD55G

CAP ALUM 3.3UF 20% 50V SMD

EMVE500ADA3R3MD55G Datasheet
  • 1: $0.37000
  • 2000: $0.07606
  • 4000: $0.07035

35YXJ100MT16.3X11

CAP ALUM 100UF 20% 35V RADIAL

35YXJ100MT16.3X11 Datasheet
  • 1: $0.37000
  • 2000: $0.07647
  • 4000: $0.07073

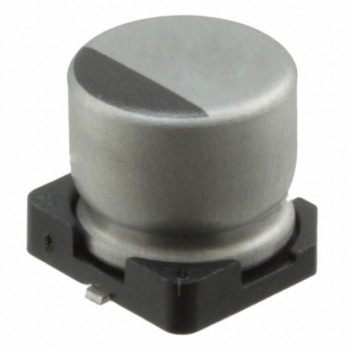

UUR0J221MCL6GS

CAP ALUM 220UF 20% 6.3V SMD

UUR0J221MCL6GS Datasheet
  • 1: $0.37000
  • 1000: $0.08006
  • 2000: $0.07585

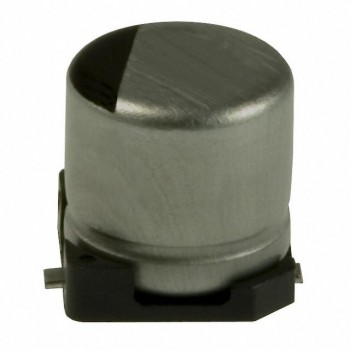

EEE-1CA470WAR
