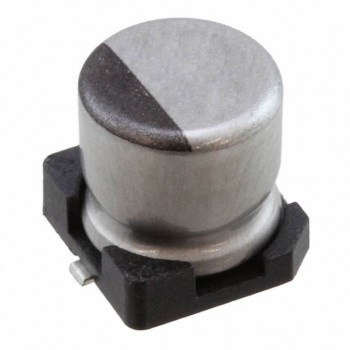

UWZ0J330MCL1GB
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 33UF 20% 6.3V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UWZ0J330MCL1GB Datasheet
-
ECAD Model
- Share
In Stock: 637
Can ship immediately
Pricing:
- 1$0.37
- 1,000$0.08858
- 2,000$0.08392
- 5,000$0.07925
- 10,000$0.07459
- 25,000$0.06993
- 50,000$0.06527
- 100,000$0.06061
Quote It
Technical Details
- Series:UWZ
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:33 µF
- Tolerance:±20%
- Voltage - Rated:6.3 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:High Temperature Reflow
- Ripple Current @ Low Frequency:30 mA @ 120 Hz
- Ripple Current @ High Frequency:45 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.197" Dia (5.00mm)
- Height - Seated (Max):0.213" (5.40mm)
- Surface Mount Land Size:0.209" L x 0.209" W (5.30mm x 5.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
