EEE-HD1C100AR
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 10UF 20% 16V SMD
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
- 1$0.39
Quote It
Technical Details
- Series:HD
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:10 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive, High Temperature Reflow
- Ripple Current @ Low Frequency:28 mA @ 120 Hz
- Ripple Current @ High Frequency:47.6 mA @ 10 kHz
- Impedance:12 Ohms
- Lead Spacing:-
- Size / Dimension:0.157" Dia (4.00mm)
- Height - Seated (Max):0.228" (5.80mm)
- Surface Mount Land Size:0.169" L x 0.169" W (4.30mm x 4.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products
CAP 100 UF 20% 10 V
- 1: $0.39000
- 900: $0.22600
- 1800: $0.21500
CAP 270 UF 20% 25 V
- 1: $0.39000
- 800: $0.23896
- 1600: $0.22896

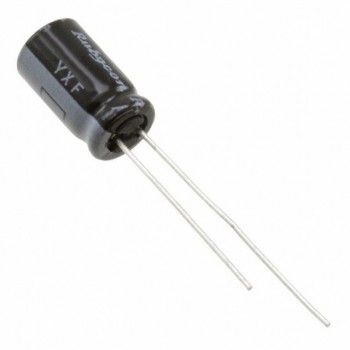

CAP ALUM 100UF 20% 16V RADIAL
