EEE-HB1V100AR

Panasonic
In Stock: 407

Can ship immediately

Pricing:
  • 1$0.4
  • 1,000$0.0962
  • 2,000$0.09114
  • 5,000$0.08607
  • 10,000$0.08101
  • 25,000$0.07595
  • 50,000$0.07088
  • 100,000$0.06886

Quote It

Technical Details

  • Series:HB
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Capacitance:10 µF
  • Tolerance:±20%
  • Voltage - Rated:35 V
  • ESR (Equivalent Series Resistance):-
  • Lifetime @ Temp.:2000 Hrs @ 105°C
  • Operating Temperature:-40°C ~ 105°C
  • Polarization:Polar
  • Ratings:AEC-Q200



  • Applications:Automotive
  • Ripple Current @ Low Frequency:28 mA @ 120 Hz
  • Ripple Current @ High Frequency:47.6 mA @ 10 kHz
  • Impedance:-
  • Lead Spacing:-
  • Size / Dimension:0.197" Dia (5.00mm)
  • Height - Seated (Max):0.228" (5.80mm)
  • Surface Mount Land Size:0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Mounting Type:Surface Mount
  • Package / Case:Radial, Can - SMD

Related Products


860131274001

CAP 1 UF 20% 350 V

  • 1: $0.40000
  • 800: $0.24430
  • 1600: $0.23329

EEE-HB0J470AR

CAP ALUM 47UF 20% 6.3V SMD

EEE-HB0J470AR Datasheet
  • 1: $0.40000
  • 1000: $0.10101
  • 2000: $0.09569

UPW0J471MPD1TD

CAP ALUM 470UF 20% 6.3V RADIAL

UPW0J471MPD1TD Datasheet
  • 1: $0.40000
  • 1000: $0.09700
  • 2000: $0.09189

860020475015

CAP ALUM 560UF 20% 25V RADIAL

  • 1: $0.40000
  • 500: $0.24964
  • 1000: $0.23863

UVK2A330MPD1TD

CAP ALUM 33UF 20% 100V RADIAL

UVK2A330MPD1TD Datasheet
  • 1: $0.41000
  • 1000: $0.09947
  • 2000: $0.09424

EMVE350ADA330MF60G

CAP ALUM 33UF 20% 35V SMD

EMVE350ADA330MF60G Datasheet
  • 1: $0.41000
  • 1000: $0.09787
  • 2000: $0.09272

UCD1V100MCL6GS

CAP ALUM 10UF 20% 35V SMD

UCD1V100MCL6GS Datasheet
  • 1: $0.41000
  • 2000: $0.09367
  • 4000: $0.08847

EEE-HB1H6R8R

CAP ALUM 6.8UF 20% 50V SMD

EEE-HB1H6R8R Datasheet
  • 1: $0.41000
  • 1000: $0.09718
  • 2000: $0.09207

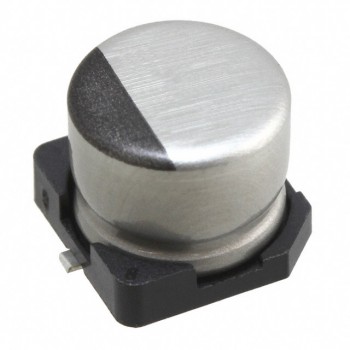

UWJ1A101MCL1GB
