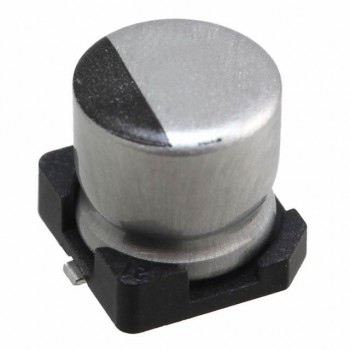

UCD0J101MCL1GS
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 100UF 20% 6.3V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UCD0J101MCL1GS Datasheet
-
ECAD Model
- Share
In Stock: 616
Can ship immediately
Pricing:
- 1$0.49
- 1,000$0.11707
- 2,000$0.11091
- 5,000$0.10475
- 10,000$0.09858
- 25,000$0.09242
- 50,000$0.08626
- 100,000$0.0838
Quote It
Technical Details
- Series:UCD
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:100 µF
- Tolerance:±20%
- Voltage - Rated:6.3 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:120 mA @ 120 Hz
- Ripple Current @ High Frequency:240 mA @ 100 kHz
- Impedance:360 mOhms
- Lead Spacing:-
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.240" (6.10mm)
- Surface Mount Land Size:0.260" L x 0.260" W (6.60mm x 6.60mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
