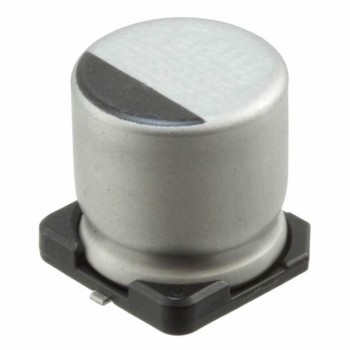

UWF1E220MCL1GB
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 22UF 20% 25V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UWF1E220MCL1GB Datasheet
-
ECAD Model
- Share
In Stock: 447
Can ship immediately
Pricing:
- 1$0.49
- 1,000$0.1188
- 2,000$0.11255
- 5,000$0.1063
- 10,000$0.10005
- 25,000$0.09379
- 50,000$0.08754
- 100,000$0.08129
Quote It
Technical Details
- Series:UWF
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:22 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:-
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:57.5 mA @ 120 Hz
- Ripple Current @ High Frequency:115 mA @ 100 kHz
- Impedance:1.3 Ohms
- Lead Spacing:-
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.217" (5.50mm)
- Surface Mount Land Size:0.260" L x 0.260" W (6.60mm x 6.60mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
