EEE-FK1V100AR

Panasonic
In Stock: 786

Can ship immediately

Pricing:
  • 1$0.52
  • 1,000$0.12409
  • 2,000$0.11756
  • 5,000$0.11103
  • 10,000$0.1045
  • 25,000$0.09797
  • 50,000$0.09144
  • 100,000$0.08491

Quote It

Technical Details

  • Series:FK
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Capacitance:10 µF
  • Tolerance:±20%
  • Voltage - Rated:35 V
  • ESR (Equivalent Series Resistance):-
  • Lifetime @ Temp.:2000 Hrs @ 105°C
  • Operating Temperature:-55°C ~ 105°C
  • Polarization:Polar
  • Ratings:AEC-Q200



  • Applications:Automotive, High Temperature Reflow
  • Ripple Current @ Low Frequency:104 mA @ 120 Hz
  • Ripple Current @ High Frequency:160 mA @ 100 kHz
  • Impedance:700 mOhms
  • Lead Spacing:-
  • Size / Dimension:0.197" Dia (5.00mm)
  • Height - Seated (Max):0.240" (6.10mm)
  • Surface Mount Land Size:0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Mounting Type:Surface Mount
  • Package / Case:Radial, Can - SMD

Related Products


25SGV33M6.3X6.1

CAP ALUM 33UF 20% 25V SMD

25SGV33M6.3X6.1 Datasheet
  • 1: $0.52000
  • 1000: $0.13720
  • 2000: $0.12913

UPJ2A330MPD1TD

CAP ALUM 33UF 20% 100V RADIAL

UPJ2A330MPD1TD Datasheet
  • 1: $0.52000
  • 1000: $0.13946
  • 2000: $0.13125

UUD0J680MCL1GS

CAP ALUM 68UF 20% 6.3V SMD

UUD0J680MCL1GS Datasheet
  • 1: $0.52000
  • 1000: $0.12429
  • 2000: $0.11775

EEE-FN1V330R

CAP ALUM 33UF 35VDC 20% SMD

  • 1: $0.52000

860040474007

CAP 470 UF 20% 25 V

  • 1: $0.52000
  • 800: $0.32250
  • 1600: $0.30851

ULD1C221MPD1TD

CAP ALUM 220UF 20% 16V THRU HOLE

ULD1C221MPD1TD Datasheet
  • 1: $0.52000
  • 1000: $0.11303
  • 2000: $0.10708

EEE-1HA220AP

CAP ALUM 22UF 20% 50V SMD

EEE-1HA220AP Datasheet
  • 1: $0.52000
  • 1000: $0.13755
  • 2000: $0.12946

EEE-1HA3R3NP

CAP ALUM 3.3UF 20% 50V SMD

EEE-1HA3R3NP Datasheet
  • 1: $0.52000
  • 1000: $0.13009
  • 2000: $0.12325

UCD1H220MCL1GS

CAP ALUM 22UF 20% 50V SMD

UCD1H220MCL1GS Datasheet
  • 1: $0.52000
  • 1000: $0.12429
  • 2000: $0.11775

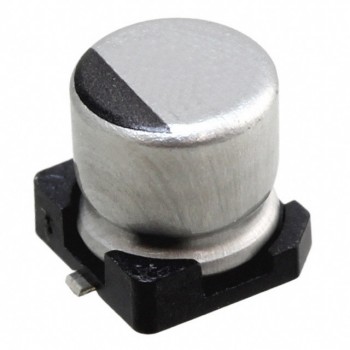

UWG1V100MCL1GB
