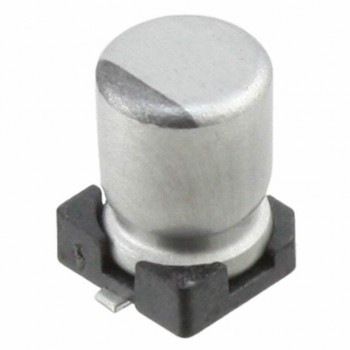

6.3SZV100M6.3X5.5
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 100UF 20% 6.3V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet 6.3SZV100M6.3X5.5 Datasheet
-
ECAD Model
- Share
In Stock: 813
Can ship immediately
Pricing:
- 1$0.54
- 1,000$0.14472
- 2,000$0.13621
- 5,000$0.12769
- 10,000$0.11918
- 25,000$0.11492
- 50,000$0.11067
Quote It
Technical Details
- Series:SZV
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:100 µF
- Tolerance:±20%
- Voltage - Rated:6.3 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:98 mA @ 120 Hz
- Ripple Current @ High Frequency:140 mA @ 100 kHz
- Impedance:1 Ohms
- Lead Spacing:-
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.217" (5.50mm)
- Surface Mount Land Size:0.260" L x 0.260" W (6.60mm x 6.60mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
