UWG1V330MCL1GS
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

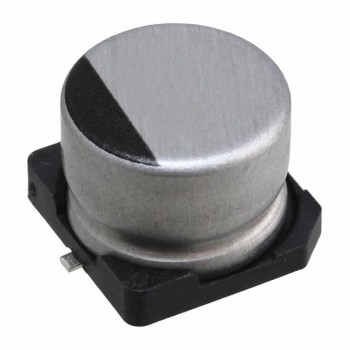

- DescriptionCAP ALUM 33UF 20% 35V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UWG1V330MCL1GS Datasheet
-
ECAD Model
- Share
In Stock: 763
Can ship immediately
Pricing:
- 1$0.61
- 1,000$0.1636
- 2,000$0.15397
- 5,000$0.14435
- 10,000$0.13473
- 25,000$0.12992
- 50,000$0.1251
Quote It
Technical Details
- Series:UWG
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:33 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:-
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:115 mA @ 120 Hz
- Ripple Current @ High Frequency:230 mA @ 100 kHz
- Impedance:400 mOhms
- Lead Spacing:-
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.256" (6.50mm)
- Surface Mount Land Size:0.327" L x 0.327" W (8.30mm x 8.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
