UZT1E4R7MCL1GB
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 4.7UF 20% 25V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UZT1E4R7MCL1GB Datasheet
-
ECAD Model
- Share
In Stock: 432
Can ship immediately
Pricing:
- 1$0.69
- 2,000$0.17313
- 4,000$0.16231
- 10,000$0.15149
- 14,000$0.14878
- 50,000$0.14067
Quote It
Technical Details
- Series:UZT
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:4.7 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:-
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:11 mA @ 120 Hz
- Ripple Current @ High Frequency:16.5 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.157" Dia (4.00mm)
- Height - Seated (Max):0.181" (4.60mm)
- Surface Mount Land Size:0.169" L x 0.169" W (4.30mm x 4.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products

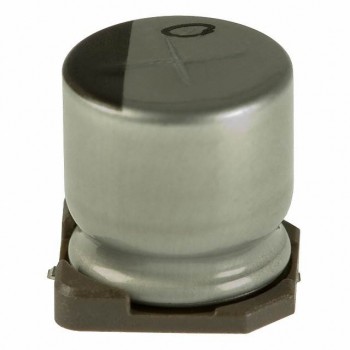

CAP ALUM 330UF 20% 35V SMD
- 1: $0.69000

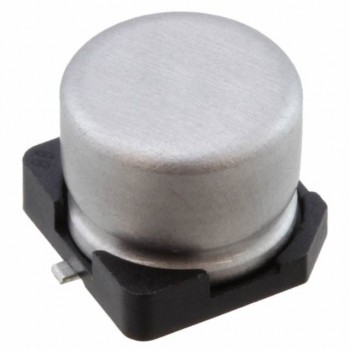

CAP ALUM 220UF 16V 20% SMD
