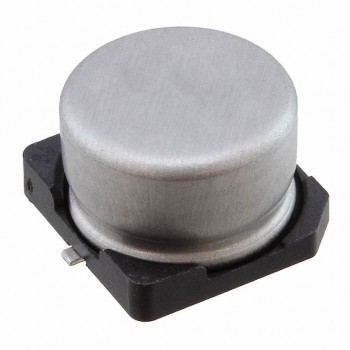

EEE-FK0J331P
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 6.3V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEE-FK0J331P Datasheet
-
ECAD Model
- Share
In Stock: 365
Can ship immediately
Pricing:
- 1$0.73
- 1,000$0.19568
- 2,000$0.18417
- 5,000$0.17266
- 10,000$0.16115
- 25,000$0.15655
Quote It
Technical Details
- Series:FK
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:6.3 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:225 mA @ 120 Hz
- Ripple Current @ High Frequency:300 mA @ 100 kHz
- Impedance:260 mOhms
- Lead Spacing:-
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.256" (6.50mm)
- Surface Mount Land Size:0.327" L x 0.327" W (8.30mm x 8.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
