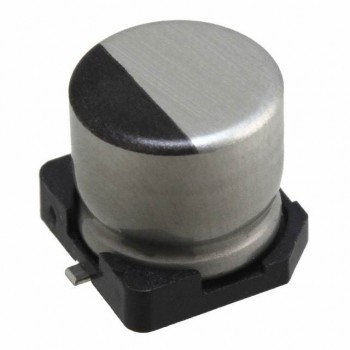

EEE-HAA102UAP
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1000UF 20% 10V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEE-HAA102UAP Datasheet
-
ECAD Model
- Share
In Stock: 446
Can ship immediately
Pricing:
- 1$0.81
- 500$0.29621
- 1,000$0.24944
- 2,500$0.23385
- 5,000$0.21826
- 12,500$0.21202
Quote It
Technical Details
- Series:HA
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:1000 µF
- Tolerance:±20%
- Voltage - Rated:10 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:400 mA @ 120 Hz
- Ripple Current @ High Frequency:680 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.402" (10.20mm)
- Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
