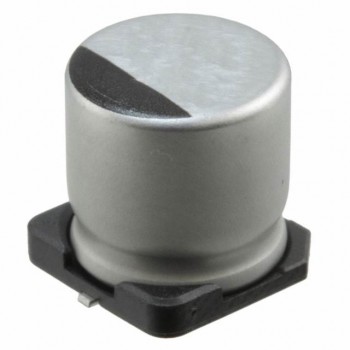

ULH2C180MNL1GS
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 18UF 20% 160V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet ULH2C180MNL1GS Datasheet
-
ECAD Model
- Share
In Stock: 295
Can ship immediately
Pricing:
- 1$0.95
- 500$0.36405
- 1,000$0.30657
- 2,500$0.28741
- 5,000$0.26825
- 12,500$0.25484
- 25,000$0.24909
Quote It
Technical Details
- Series:ULH
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:18 µF
- Tolerance:±20%
- Voltage - Rated:160 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:4000 Hrs @ 125°C
- Operating Temperature:-40°C ~ 125°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:60 mA @ 120 Hz
- Ripple Current @ High Frequency:90 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.406" (10.30mm)
- Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
