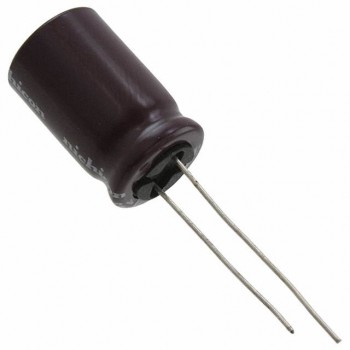

UPJ1K181MHD6TN
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 180UF 20% 80V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPJ1K181MHD6TN Datasheet
-
ECAD Model
- Share
In Stock: 304
Can ship immediately
Pricing:
- 1$1.12
- 250$0.53802
- 500$0.45732
- 750$0.43041
- 1,250$0.40351
- 2,500$0.37661
- 6,250$0.36585
Quote It
Technical Details
- Series:UPJ
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:180 µF
- Tolerance:±20%
- Voltage - Rated:80 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:543 mA @ 120 Hz
- Ripple Current @ High Frequency:766 mA @ 10 kHz
- Impedance:150 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):0.650" (16.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
