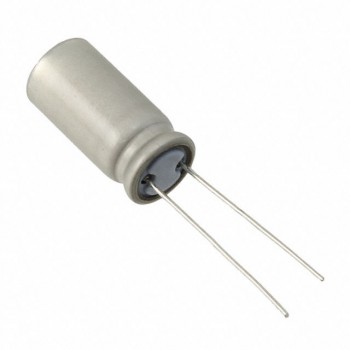

UBX1J560MPL1TD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 56UF 20% 63V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UBX1J560MPL1TD Datasheet
-
ECAD Model
- Share
In Stock: 628
Can ship immediately
Pricing:
- 1$1.4
- 500$0.56961
- 1,000$0.50259
- 2,500$0.46908
- 5,000$0.45568
Quote It
Technical Details
- Series:UBX
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:56 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 150°C
- Operating Temperature:-55°C ~ 150°C
- Polarization:Polar
- Ratings:-
- Applications:Automotive
- Ripple Current @ Low Frequency:215 mA @ 120 Hz
- Ripple Current @ High Frequency:430 mA @ 100 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.551" (14.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
