EEE-FC1V1R0R
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1UF 20% 35V SMD
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
- 1$0.34
Quote It
Technical Details
- Series:FC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:1 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:45 mA @ 120 Hz
- Ripple Current @ High Frequency:60 mA @ 100 kHz
- Impedance:3 Ohms
- Lead Spacing:-
- Size / Dimension:0.157" Dia (4.00mm)
- Height - Seated (Max):0.213" (5.40mm)
- Surface Mount Land Size:0.169" L x 0.169" W (4.30mm x 4.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products

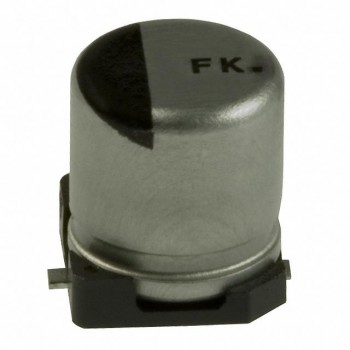

CAP ALUM 10UF 20% 35V SMD
