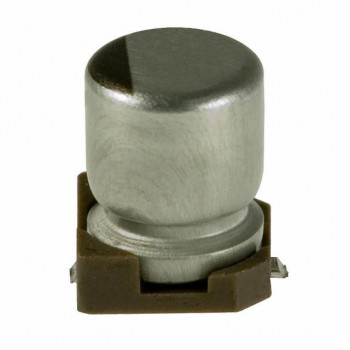

UWX1V4R7MCL1GB
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 4.7UF 20% 35V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UWX1V4R7MCL1GB Datasheet
-
ECAD Model
- Share
In Stock: 133
Can ship immediately
Pricing:
- 1$0.26
- 2,000$0.05387
- 4,000$0.04984
- 10,000$0.04714
- 14,000$0.04471
- 50,000$0.0404
- 100,000$0.03663
Quote It
Technical Details
- Series:UWX
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:4.7 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:18 mA @ 120 Hz
- Ripple Current @ High Frequency:27 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.157" Dia (4.00mm)
- Height - Seated (Max):0.213" (5.40mm)
- Surface Mount Land Size:0.169" L x 0.169" W (4.30mm x 4.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
