EEE-FC1V4R7R
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 4.7UF 20% 35V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEE-FC1V4R7R Datasheet
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
- 1$0.34
- 2,000$0.07678
- 4,000$0.07251
- 10,000$0.06825
- 14,000$0.06611
- 50,000$0.05972
- 100,000$0.05545
Quote It
Technical Details
- Series:FC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:4.7 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:45 mA @ 120 Hz
- Ripple Current @ High Frequency:60 mA @ 100 kHz
- Impedance:3 Ohms
- Lead Spacing:-
- Size / Dimension:0.157" Dia (4.00mm)
- Height - Seated (Max):0.213" (5.40mm)
- Surface Mount Land Size:0.169" L x 0.169" W (4.30mm x 4.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products

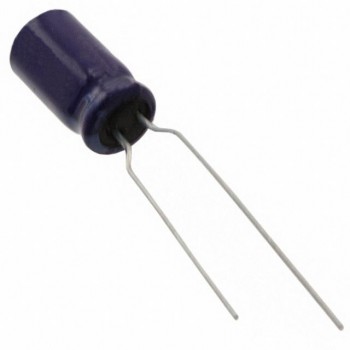

CAP ALUM 470UF 20% 10V RADIAL
