UHV1V221MPD1TD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 220UF 20% 35V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UHV1V221MPD1TD Datasheet
-
ECAD Model
- Share
In Stock: 117
Can ship immediately
Pricing:
- 1$0.55
- 1,000$0.13191
- 2,000$0.12496
- 5,000$0.11802
- 10,000$0.11108
- 25,000$0.10414
- 50,000$0.09719
- 100,000$0.09025
Quote It
Technical Details
- Series:UHV
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:220 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:6000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:495 mA @ 120 Hz
- Ripple Current @ High Frequency:990 mA @ 100 kHz
- Impedance:59 mOhms
- Lead Spacing:0.138" (3.50mm)
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.512" (13.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products

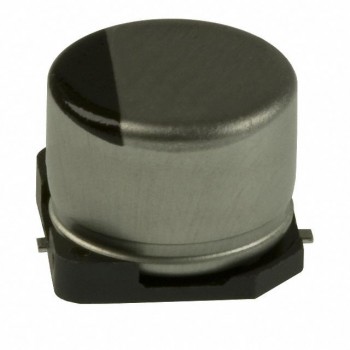

CAP ALUM 220UF 20% 10V SMD
