EEE-FT1E101AP
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant

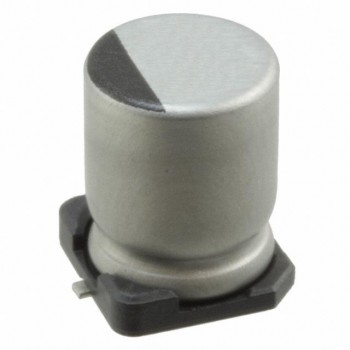

- DescriptionCAP ALUM 100UF 20% 25V SMD
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
- 1$0.64
Quote It
Technical Details
- Series:FT
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:100 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):260mOhm @ 100kHz
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:195 mA @ 120 Hz
- Ripple Current @ High Frequency:300 mA @ 100 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.240" (6.10mm)
- Surface Mount Land Size:0.260" L x 0.260" W (6.60mm x 6.60mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
