EEU-FC1C471B
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 470UF 20% 16V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEU-FC1C471B Datasheet
-
ECAD Model
- Share
In Stock: 1,148
Can ship immediately
Pricing:
- 1$0.59
- 500$0.18425
- 1,000$0.15661
- 2,500$0.1474
- 5,000$0.13818
- 12,500$0.12667
- 25,000$0.12437
- 50,000$0.11976
Quote It
Technical Details
- Series:FC
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:566.3 mA @ 120 Hz
- Ripple Current @ High Frequency:755 mA @ 100 kHz
- Impedance:90 mOhms
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.531" (13.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products

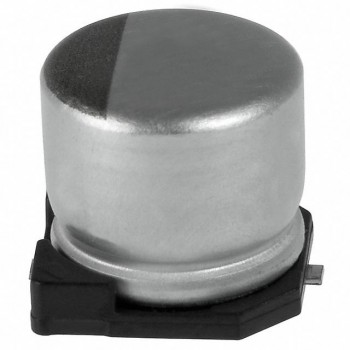

CAP ALUM 220UF 20% 16V SMD
