EEE-FP1H101AP
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 100UF 20% 50V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEE-FP1H101AP Datasheet
-
ECAD Model
- Share
In Stock: 111
Can ship immediately
Pricing:
- 1$0.95
- 500$0.34672
- 1,000$0.29197
- 2,500$0.27373
- 5,000$0.25548
- 12,500$0.24818
Quote It
Technical Details
- Series:FP
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:100 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):180mOhm @ 100kHz
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:435.5 mA @ 120 Hz
- Ripple Current @ High Frequency:670 mA @ 100 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.413" (10.50mm)
- Surface Mount Land Size:0.327" L x 0.327" W (8.30mm x 8.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products

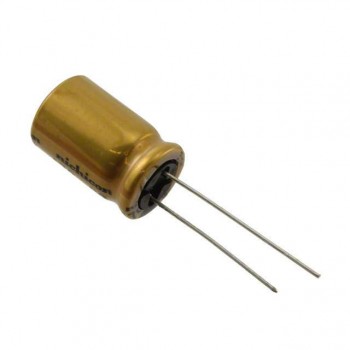

CAP ALUM 1000UF 20% 35V RADIAL
