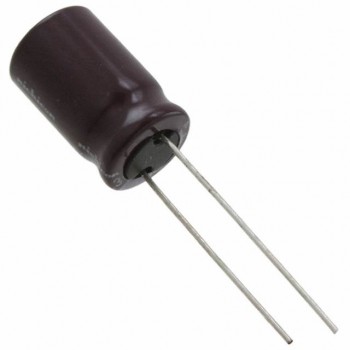

ECA-1EHG222B
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 2200UF 20% 25V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet ECA-1EHG222B Datasheet
-
ECAD Model
- Share
In Stock: 246
Can ship immediately
Pricing:
- 1$1.13
- 500$0.46123
- 1,000$0.40696
- 2,500$0.37983
- 5,000$0.36898
Quote It
Technical Details
- Series:NHG
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:2200 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.09 A @ 120 Hz
- Ripple Current @ High Frequency:1.254 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.492" Dia (12.50mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
