UHV1C471MPD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 470UF 20% 16V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UHV1C471MPD Datasheet
-
ECAD Model
- Share
In Stock: 108
Can ship immediately
Pricing:
- 1$0.57
- 10$0.40153
- 100$0.26473
- 500$0.19606
- 1,000$0.16664
- 2,500$0.15683
- 5,000$0.14705
Quote It
Technical Details
- Series:UHV
- Package:Bulk
- Part Status:Active
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:6000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:495 mA @ 120 Hz
- Ripple Current @ High Frequency:990 mA @ 100 kHz
- Impedance:59 mOhms
- Lead Spacing:0.138" (3.50mm)
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.512" (13.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products

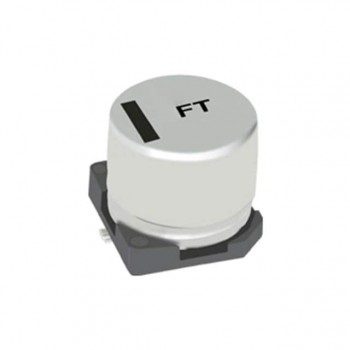

CAP ALUM 330UF 50V 20% SMD
