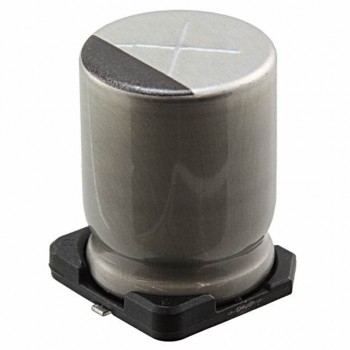

EMZS250ARA102MJA0G
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1000UF 20% 25V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EMZS250ARA102MJA0G Datasheet
-
ECAD Model
- Share
In Stock: 166
Can ship immediately
Pricing:
- 1$1.3
- 500$0.3582
- 1,000$0.30845
- 2,500$0.28855
- 5,000$0.27363
- 12,500$0.2593
- 25,000$0.25373
Quote It
Technical Details
- Series:Alchip™- MZS
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:1000 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):60mOhm @ 100kHz
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:714 mA @ 120 Hz
- Ripple Current @ High Frequency:1.19 A @ 100 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.413" (10.50mm)
- Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
