UVK1E472MHD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 4700UF 20% 25V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UVK1E472MHD Datasheet
-
ECAD Model
- Share
In Stock: 206
Can ship immediately
Pricing:
- 1$1.68
- 10$1.33019
- 100$0.99788
- 500$0.7539
- 1,000$0.66521
- 2,500$0.62086
- 5,000$0.59869
Quote It
Technical Details
- Series:UVK
- Package:Bulk
- Part Status:Active
- Capacitance:4700 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.2 A @ 120 Hz
- Ripple Current @ High Frequency:2.53 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products

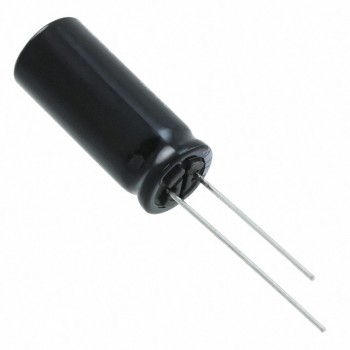

CAP ALUM 47UF 20% 450V THRU HOLE
