UFW1H332MHD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

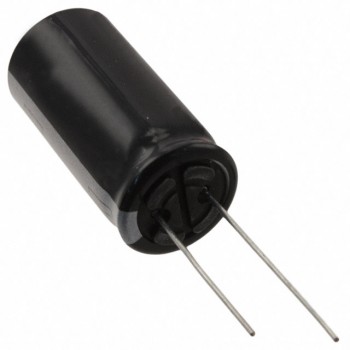

- DescriptionCAP ALUM 3300UF 20% 50V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UFW1H332MHD Datasheet
-
ECAD Model
- Share
In Stock: 111
Can ship immediately
Pricing:
- 1$2.65
- 10$2.14089
- 100$1.63464
- 500$1.24543
- 1,000$1.08975
- 2,500$1.05861
Quote It
Technical Details
- Series:UFW
- Package:Bulk
- Part Status:Active
- Capacitance:3300 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:Audio
- Ripple Current @ Low Frequency:2.36 A @ 120 Hz
- Ripple Current @ High Frequency:2.714 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):1.398" (35.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
