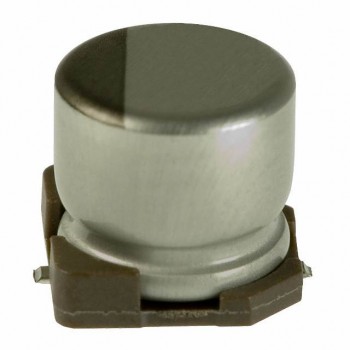

UCB1C220MCL1GS
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 22UF 20% 16V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UCB1C220MCL1GS Datasheet
-
ECAD Model
- Share
In Stock: 180
Can ship immediately
Pricing:
- 1$0.53
- 1,000$0.12755
- 2,000$0.12084
- 5,000$0.11413
- 10,000$0.10741
- 25,000$0.1007
- 50,000$0.09399
- 100,000$0.08727
Quote It
Technical Details
- Series:UCB
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:22 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:7000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:30 mA @ 120 Hz
- Ripple Current @ High Frequency:45 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.197" Dia (5.00mm)
- Height - Seated (Max):0.276" (7.00mm)
- Surface Mount Land Size:0.209" L x 0.209" W (5.30mm x 5.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
