EEE-FK1A151AP
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 150UF 20% 10V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEE-FK1A151AP Datasheet
-
ECAD Model
- Share
In Stock: 126
Can ship immediately
Pricing:
- 1$0.49
- 1,000$0.1379
- 2,000$0.12979
- 5,000$0.12168
- 10,000$0.11357
- 25,000$0.10951
- 50,000$0.10545
Quote It
Technical Details
- Series:FK
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:150 µF
- Tolerance:±20%
- Voltage - Rated:10 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive, High Temperature Reflow
- Ripple Current @ Low Frequency:156 mA @ 120 Hz
- Ripple Current @ High Frequency:240 mA @ 100 kHz
- Impedance:360 mOhms
- Lead Spacing:-
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.240" (6.10mm)
- Surface Mount Land Size:0.260" L x 0.260" W (6.60mm x 6.60mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products

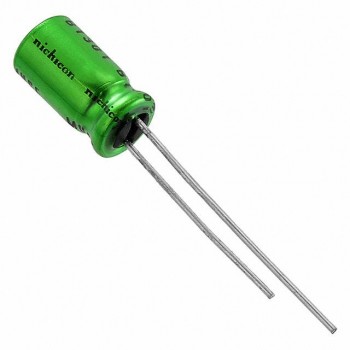

CAP 68 UF 20% 10 V
