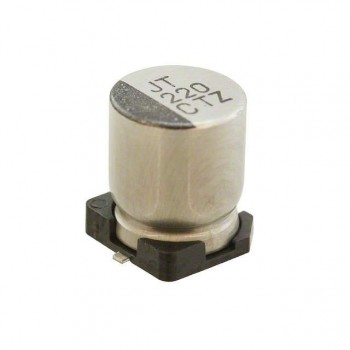

EEE-1CA221XAP
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 220UF 20% 16V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEE-1CA221XAP Datasheet
-
ECAD Model
- Share
In Stock: 229
Can ship immediately
Pricing:
- 1$0.54
- 900$0.14453
- 1,800$0.13731
- 2,700$0.13008
- 4,500$0.12284
- 9,000$0.11562
- 22,500$0.11201
- 45,000$0.1084
- 90,000$0.10117
Quote It
Technical Details
- Series:S
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:220 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:162 mA @ 120 Hz
- Ripple Current @ High Frequency:275.4 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.303" (7.70mm)
- Surface Mount Land Size:0.260" L x 0.260" W (6.60mm x 6.60mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
