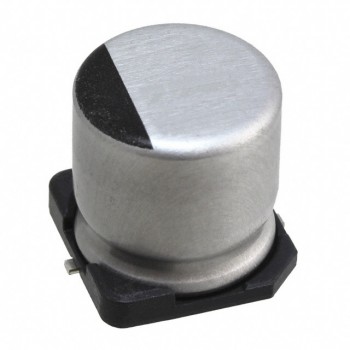

UCM0J471MCL1GS
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 470UF 20% 6.3V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UCM0J471MCL1GS Datasheet
-
ECAD Model
- Share
In Stock: 290
Can ship immediately
Pricing:
- 1$0.91
- 900$0.29447
- 1,800$0.27714
- 2,700$0.25982
- 4,500$0.24249
- 9,000$0.23557
Quote It
Technical Details
- Series:UCM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:6.3 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:300 mA @ 120 Hz
- Ripple Current @ High Frequency:600 mA @ 100 kHz
- Impedance:160 mOhms
- Lead Spacing:-
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.315" (8.00mm)
- Surface Mount Land Size:0.260" L x 0.260" W (6.60mm x 6.60mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
