UCJ1H470MCL1GS
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 47UF 20% 50V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet UCJ1H470MCL1GS Datasheet
-
ECAD Model
- Share
In Stock: 171
Can ship immediately
Pricing:
- 1$1.2
- 500$0.48908
- 1,000$0.43153
- 2,500$0.40276
- 5,000$0.38838
- 12,500$0.3668
- 25,000$0.35961
Quote It
Technical Details
- Series:UCJ
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Capacitance:47 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):1.5Ohm
- Lifetime @ Temp.:2000 Hrs @ 125°C
- Operating Temperature:-40°C ~ 125°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:165 mA @ 120 Hz
- Ripple Current @ High Frequency:330 mA @ 100 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.413" (10.50mm)
- Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products

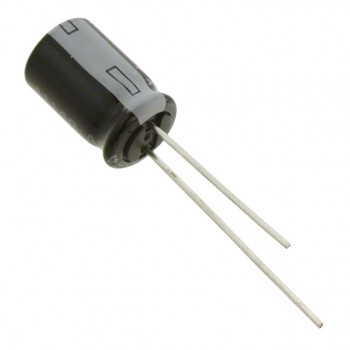

CAP ALUM 1000UF 20% 10V RADIAL
